Krema Tubo Pleniganta Plenigajn Maŝinajn Fabrikistojn

Hejmo / Plenigaj Maŝinoj / Krema Pleniga Maŝino / Krema Tubo Pleniganta Plenigajn Maŝinajn Fabrikistojn

Krema Tubo Pleniganta Plenigajn Maŝinajn Fabrikistojn

Priskribo de la produkto:


Ĉi tiu maŝino estas alta teknika ekipaĵo, kiu sukcese disvolviĝis kaj projektis enkondukante en altnivelan eksterlandan teknologion kaj integriĝantan GMP-postulon, kun trajtoj de justa strukturo, plena funkcio, facila operacio, preciza plenigo, stabila kurado, same kiel malalta bruo. Ĝi adoptas per PLC-regilo, aŭtomate funkcianta el pleniga materialo de likva aŭ alta rapido ĝis presita numero de loto (inkluzivas daton de fabrikado), ĝi estas ideala ekipaĵo por ALU-tubo, plasta tubo kaj multobla tubo-plenigo kaj sigelado en kosmetikaĵoj, apoteko, manĝaĵo, akvaĵoj ktp. industrioj, konformas al la normo de GMP.

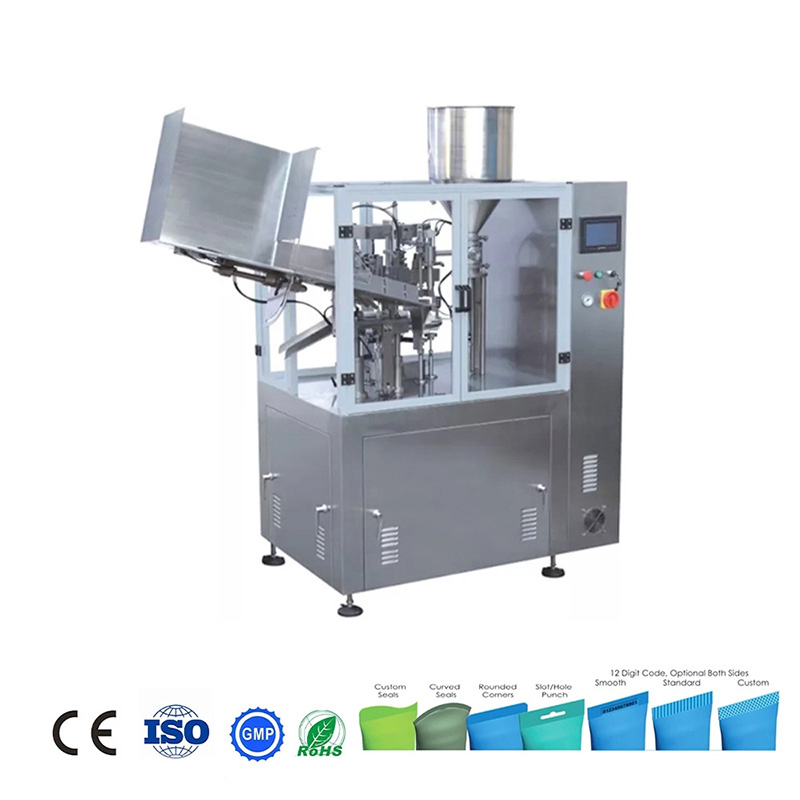

Krema Tubo Pleniganta Plenigajn Maŝinajn Fabrikistojn

Trajtoj:


1. Alta grado operacio ekrano kun ekrano LCD PLC kaj butonoj, facila operacio kaj pli homaranĝo Per paŝoj rapideco ĝustigas, parametro agordita, elmetita kalkulo, prema indekso kaj fiaska ekrano.
2. Aŭtomate ekzekuti tuban provizon, fotoelektron-registron, inertan plenigadon de gaso (laŭvola), materialo-plenigo kaj sigelado, landa nombro-presado, fina produkto-eligo.
3. Registro de fotoelektronoj de alta precizeco reduktis la kromatan aberacion.
4. Ĝustigitaj partoj eksteraj en pozicio, cifereca ekrano, konvena kaj preciza ĝustigi (taŭga por produkto de variaj produktoj).
5. Mekanika, fotoelektra, elektra, pneŭmata integra kontrolado, atingas neniun tubon, ne plenigas funkcion; Atendante se tubo erara pozicio aŭ premo tro malalta, aŭtomata haltiga maŝino se malfermi la protektan pordon.

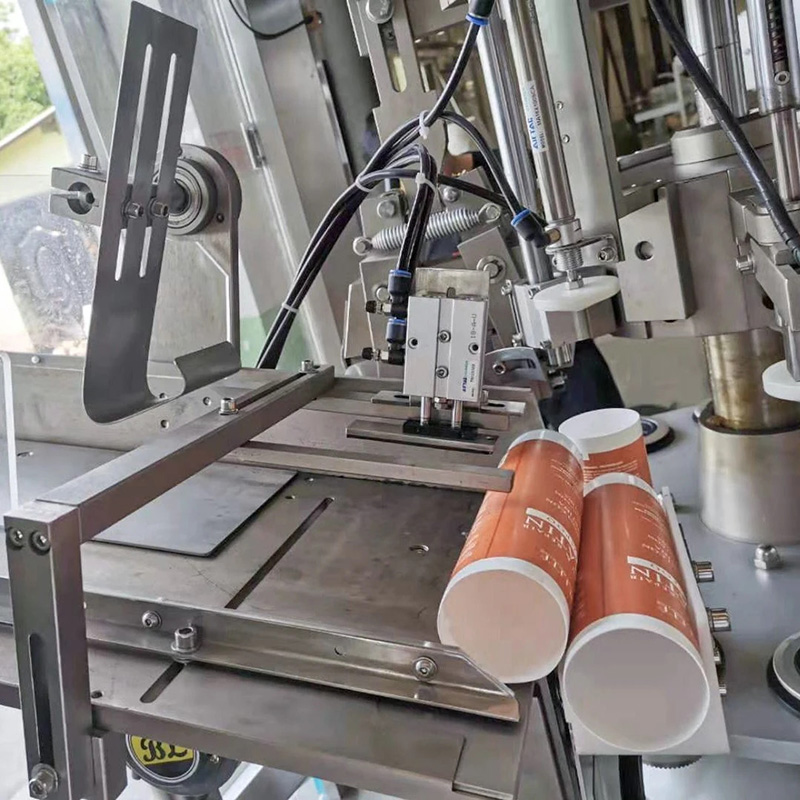

Krema Tubo Pleniganta Plenigajn Maŝinajn Fabrikistojn

ModeloGF-400 AGF-400 B
Tuba materialoMetala tubo, ALU-tuboPlasta tubo, tubo kunmetita
Diametro de tubo10-42 mm10-60 mm
Longa tubo50-250 (agordebla)50-250 (agordebla)
Pleniga volumo5-500ml / branĉo (Agordebla)5-800ml / branĉo (Agordebla)
Pleniga precizeco≤ ± 1%≤ ± 1%
Rapido3-10 r / min2,5-7 r / min
Produkta kapablo30-60 PC / min30-60 PC / min
Aera Provizo0,55-0,65mpa0,55-0,65mpa
Motoro Potenco2kw (380V / 220V 50Hz)2kw (380V / 220V 50Hz)
Varmiga sigela potenco3KW3KW
Entuta dimensio2620 × 1020 × 1980 mm2620 × 1020 × 1980 mm
Maŝina pezo1100 kg1100 kg

Bazaj Informoj


Apliko: Alglui
Formanta Specion: Formado de Boteloj
Kondukita Tipo: Elektra
Pakado: Milda Tubo
Potenco de la motoro: 2kw (380V / 220V 50Hz)
Entuta Dimensio: 2620 × 1020 × 1980mm
Trademark: VKPAK
Origino: Ŝanhajo, Ĉinio
Aŭtomata Grado: Aŭtomata
Tipo: Pleniganta kaj Sigla Maŝino
Formanta Funkcion: Plenigado
Materialo: Algluu
Produkta Kapacito: 30-60 PC / Min
Varmiga sigela Potenco: 3kw
Maŝina Pezo: 1100kg
Specifo: CE


A cream tube filling packing machine is a type of packaging machinery designed for filling and packaging various types of creams, gels, pastes, and other similar products into tubes. This type of machine typically consists of several components, including a tube feeder, filling unit, sealing unit, and cutting unit. The overall production process is automated, which ensures the accuracy and consistency of the fill, as well as the speed of production.

The specific features and specifications of a cream tube filling packing machine may vary depending on the manufacturer and the intended application, but some common features include:

High precision: The filling system is designed to be accurate, with the ability to fill the exact amount of product specified, with minimal waste.

Versatility: The machine can be used for filling and packaging a wide range of products, including creams, gels, pastes, and other similar products.

Hygiene: The machine is designed to meet hygiene standards, with components made from food-grade stainless steel and other non-corrosive materials. The filling system is also designed to prevent contamination, ensuring the safety and quality of the product.

Easy to operate: The machine is typically user-friendly, with intuitive controls and easy to follow instructions. The system is also designed to be easy to maintain, with minimal downtime required for cleaning and servicing.

High production rates: A cream tube filling packing machine is designed to work at high production rates, with the capability of filling and packaging hundreds or even thousands of tubes per hour.

Overall, a cream tube filling packing machine is an efficient and reliable solution for filling and packaging various types of creams and gels into tubes. It is a popular choice for manufacturers who need to package products for retail or commercial use, with the ability to meet high standards of accuracy, consistency, and hygiene.
