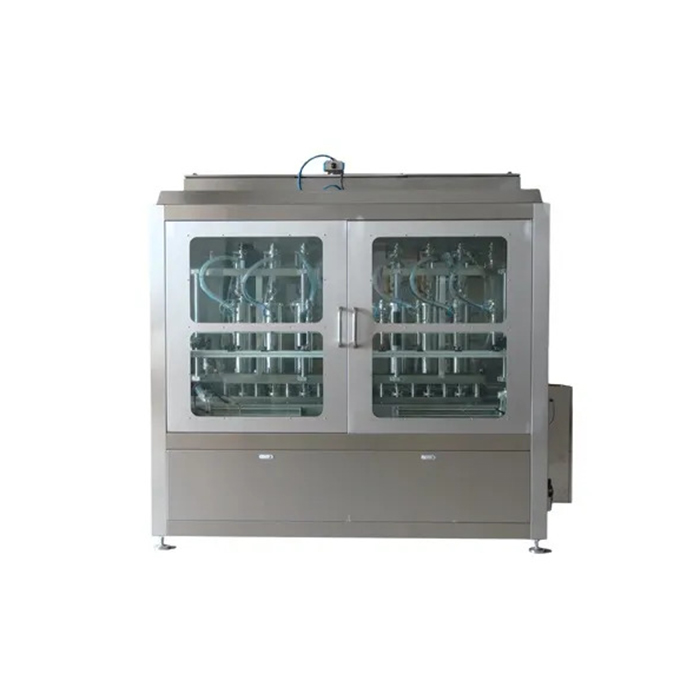

Automatic PET Bottle Filling Machine

tri-en-unu-maŝino por PET-botelo integras la funkcion de lavado, plenigo kaj ĉapado. Bazita sur altnivela teknologio eksterlande, kaj desegnita laŭ akvo-kompletigo-pretigaj postuloj

Ĉefaj trajtoj


1. This machine has a compact structure, completed control system, easy to operate and highly automated.

2. By changing the star-wheel, screw bottle inlet and arc guide plate can realize to change the bottle shape.

3. The parts that direct contact with product are made of food grade stainless steel and no technology corner pockets and easy to clean.

4. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

5. The machine adopts high effective cap sorting system and completely self control and protective device.

6. The machine is equipped with perfect overload protective device that can keep the equipment and operator safely.

7. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

8. The electric components and pneumatic components are all introduced from world famous brand products.

Kvanto de laboranta pozicioEnjuĝante 32, plenigante 32, ĉapon 10
Produktadkapacito15000BPH (500ml)
Premo de fonto de aero0,7Mpa
Aera konsumo1,2m3 / min
Akvopremo0.2-0.25Mpa
Akvokapacito2.5T / H
Ĉefa motoro potenco3.2kW
Tuta potenco4.8kw
Dimensio4250X2150X2200mm (L × W × H)
pezo5200kg

Ni ankaŭ provizas la Kompletan Aŭtomatan Pura Akvo-Botelo-Planto

Ĝi inkluzivas 4 ĉefajn partojn:

1. Plastic bottle blow molding machine
2. Water cleaning system
3. Water washing, filling, capping machine.
4. Conveyor system, labeling machine, dating machine, film wrapping machine

La kompleta linio ĉefa priskribo:


1. The plant can produce different volume bottles, from 200ml to 2000ml bottles, round and square bottles, plastic and glass bottles. It is very easy to change the different bottle molds.

2. The plant is highly automatic, you can operate on the touch screen to adjust the machine speed and working.

3. We have different speed plants, commonly, 2000BPH, 4000BPH, 7000BPH, 10,000BPH, 15000BPH..ect.

4. The material is stainless steel 304, food grade much clean and safe.

5.  We provide the engineers for customer installation, training in customer's factory.

Modeloj kaj Rapida Listo


ModeloXGF8-8-3XGF14 / 12/5XGF16 / 16/5XGF24 / 24/8XGF32 / 32/10
Lavas manojn814162432
Plenigaj valvoj812162432
Kaptante manojn355810
Taŭgaj PET / Vitraj Boteloj (150ml ĝis 2000ml)
Kapacito (Rapido)
Bazo sur 500ml
2000BPH5000BPH7000BPH12000BPH15000BPH

Provizanto de Elektraj Markoj


Ĉefa konsistoPriskribo Provizanto
PLCMitsubishi (Japanio), Siemens (Germanio)
TuŝekranoWeinview (Tajvano)
Frekvenca konvertiloMitsubishi (Japanio), Siemens (Germanio)
AerŝaltiloSchneider (Francio)
RompiloSiemens (Germanio)
KontaktistoSiemens (Germanio)
Fotoelektra ŝaltiloOmron (Japanio)

Rapidaj Detaloj


Tipo: Pleniganta Maŝino
Kondiĉo: Nova
Apliko: Trinkaĵo, Kemia, Kuraca
Pakado Tipo: Boteloj
Paka Materialo: Plasta
Aŭtomata Grado: Aŭtomata
Kondukita Tipo: Elektra
Tensio: 380V / 220V
Potenco: 4.8KW
Loko de Origino: Ŝanhajo, Ĉinio (Ĉirkaŭe)
Brandnomo: NPACK
Dimensio (L * W * H): 4250X2150X2200mm
Pezo: 5200KGS
Atesto: CE, ISO, SGS
Post-venda Servo Provizita: Inĝenieroj haveblaj al serva maŝinaro eksterlande
Fabriko: LIGAJ MAKINAJ
Botelo Grandeco: 150ml ĝis 2000ml
Botela Kolo-Diametro: 15-55mm
Botela Materialo: Plasta / Vitro
Rapido (bazo sur 500ml-botelo): 15000B / H
Kontrola sistemo: PLK-Tuŝekrano (MITSUBISHI JAPAN)
Ĉapo: Ŝraŭbo / Gazetara Ĉapo
Ĉapo-lifto: Havu
Pleniganta Likvaĵo: Minera / Pura Akvo
